Weinor Kubata | The cubic cassette awning

Clear | Stylish | Modern | Award Winning

Where does the building stop, where does the sunshade start? With the Kubata cassette awning, the transitions are smooth. With its cubic shape, it blends perfectly into modern house architecture as a stylish design element. The sun protection and facade form a balanced symbiosis that meets the highest aesthetic requirements

Weinor Kubata

Cubic shapes are a popular style element for contemporary facades. The Kubata cassette awning blends ideally into these. With its clear design it complements modern architecture perfectly.

But the high-quality technology is also impressive: LED spotlights integrated into the cassette, the weinor LongLife arm, convenient control and large choice of fabrics and colours – leaving nothing to be desired.

Cubic, clean lines – modern contemporary design

The Kubata’s Opti-Flow-System® from weinor is fitted with a support profile across the whole width of the awning that ensures optimum fabric positioning.

Wind lock safety device – well-sheltered even in winds

Proven technology prevents the awning from lifting up when wind gusts from below:

Tilting folding arm with wind lock safety device

Proven, maintenance-free technology

Forged and extruded aluminium components

Reliable drainage – rainwater is drained off in a controlled way

Penetrating rainwater is discharged laterally. This protects the cloth from moisture.

If the cloth is retracted in the wet state, the residual water runs off laterally over the channel.

Removable cover caps – easier access for the receiver/cable connections

The cover caps on both sides can be removed using the clip technology.

As a result, it is very easy to disconnect the drive and controls and it is easier to carry out maintenance work.

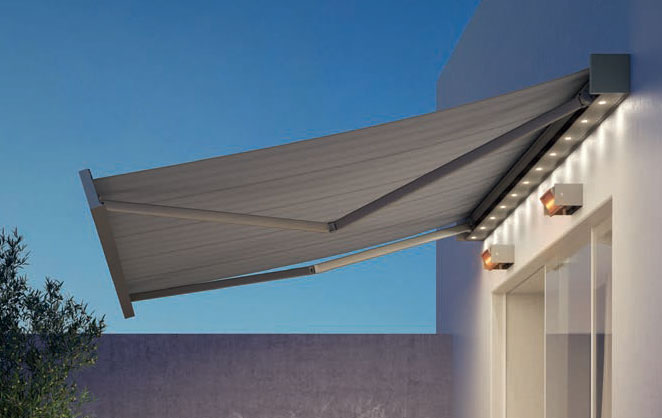

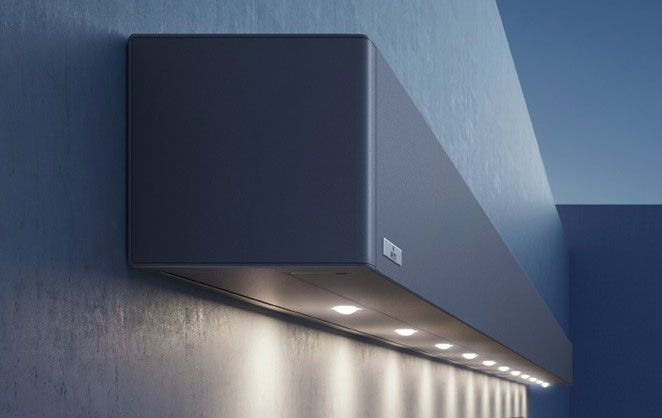

Kubata LED – cassette with integrated LED lighting

The LED spotlights integrated into the cassette produce atmospheric lighting on the patio:

30,000 LED light hours with lowest energy consumption (85% electricity saving compared to halogen technology)

LED infinitely dimmable using weinor’s BiConnect control


Max. width 700/650 cm

Max. projection 300/400 cm

Cassette size (W x H) incl. standard bracket 210 mm x 205 mm

Gear drive (with a max. width of 600 cm/ max. projection of 350 cm)

Motor drive: as standard

Angle of pitch on awning 5° to 40°

Installation alternatives can be installed on walls, ceilings and rafters

LED lighting: (separate spotlights) integrated in bottom profile

OptiNut roller tube: as standard

LongLife arm: as standard
