Markilux RS-8000 Frame System

The Markilux RS-8000 Frame System is the ideal aluminium substructure for awnings which need additional support to extend to cover further lengths. Ideal for extensions from conservatories or glass rooms, this system can also be used for exterior dining areas, smoking ban solution areas and patios requiring extensive protection from the weather – be it sun or rain!

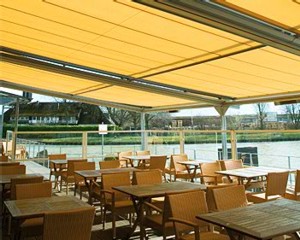

Markilux RS-8000 supporting a Markilux 8000 awning in a commercial dining area.

Markilux RS-8000 supporting a Markilux 8000 awning in a commercial dining area.

The RS-8000 is the strong, resolute substructure frame from Markilux which allows an extension of up to 7m. For large areas, multiple awnings can be coupled to an angle of upto 30°. This offers the possibility for seating capacities or additional space to be maximised to their full potential.

The profiles, gussets and foot plates are powder coated for long-lasting attractiveness.

Fixture & Installation:

This Markilux system stands free at the front on strong aluminium legs. It is installed to the wall at the back to ensure full structural strength. All profiles and connecting components are modular in design and can be both assembled and taken apart with ease.


The substructure frame system consists of aluminium profiles, stabilising connectors and footplates and are galvanised with a powder coating. Gutter profiles are available as an optional extra at a surcharge should they be required.


The Markilus RS-8000 Frame System can accept up to a maximum of 3 Markilux 8000 awnings with a maximum extension of up to 7m.

Optional Accessories:

  • Top and bottom gutters provide water drainage from the side of the cover.
  • Profiles are also available in special RAL colours.
  • Gutters for water drainage at the front of the profile are also available.

Frame Colours:

Traffic White - RAL 9016 Metallic Aluminium - RAL 9006 Grey Brown - RAL 8019
Traffic White
(RAL 9016)
Metallic Aluminium
(RAL 9006)
Grey Brown
(RAL 8019)
