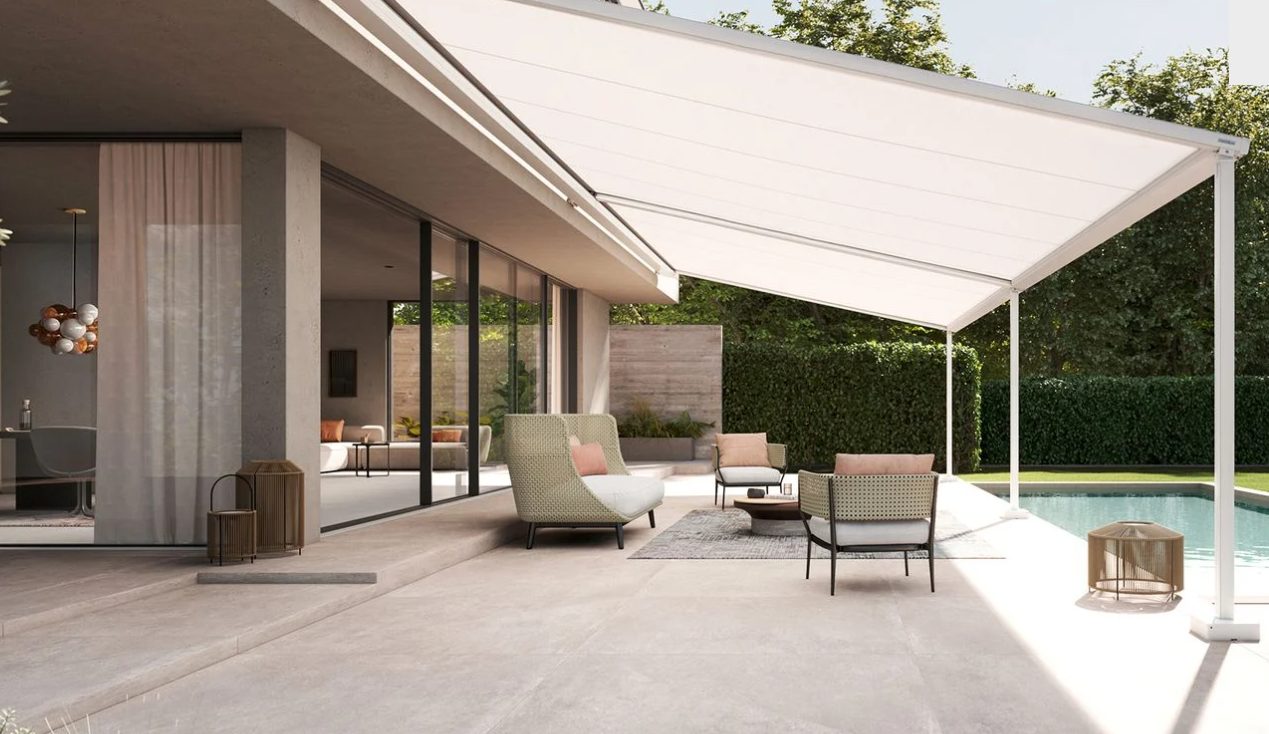

Pergola Style – Retractable Fabric Roof

For larger outdoor spaces and providing cover for sun shade and rain – the Style is defined by its clean lines and elegance with an enclosed cassette housing for the canopy fabric cover.
Purist design and incorporating LED lighting in various optional parts of the unit – the cassette at the back, the guide tracks at the sides, the support posts at the front and even in the footplate covers if required. Conveniently controlled by a smartphone app, you control the lighting mood to suit the occasion. Control of the roof cover is also simple to give you partial or total cover whilst still enjoying the natural light through the fabric of the cover.
Unlike solid roof pergolas this pergola will not feel like you have blacked out the sunlight in the daytime when protecting from rainfall.

Prices from £7,900 inc.VAT installed (based on a 4m x 4m size)

Clean, minimalistic design, with rectangular cassette housing neatly connected to the guide tracks. Square front support posts.

Max. single unit size 6m x 5m or 5m x 6m. Can be coupled for a 12m width
Made to order to the millimetre at no extra cost to fit your garden or patio perfectly.
Choice of 7 standard framework colours. Optional ANY RAL colour on request.
Over 200 fabrics to choose from and many ‘special’ fabrics, including fire resistant fabrics for commercial applications.
Smart LED lighting in colour (RGB) and warm white in cassette and guides with posts and footplate optional extra lighting
Optional Markilux shade Plus in the front profile for low lying sun, cool breeze, or privacy protection at the touch of a button.
Optional telescopic front posts to drop one or both sides lower in low sun or heavier rain to ensure a run off to a preferred side of the structure. Lower by 200 – 400mm
Optional weight box post supports when fixing into the ground isn’t possible.
High tension fabric cover with over 200 choices of fabric colours and designs

The Markilux Style Pergola is a further development on the other Markilux models which were launched some 15 years ago now. The retractable fabric pergola defines the next level of sun protection but also provides rain protection too with a higher wind rating as the fabric is attached to the structure on all 4 sides, giving maximum tension on the fabric when extended and in use.

A normal folding arm awning will only go so far in windy conditions and only some models are suitable for use in rain and then only at a minimum pitch of 14 degrees or more which isn’t always achievable on a house wall. The pergola system can be set at lower angles and with the taut fabric any rainfall will land and drain off the front safely.

Design Awards

Features of the Pergola Style

Features of the Mx Pergola Style

The new markilux pergola style is a visual delight by day—and a radiant centerpiece by night. Once illuminated, it transforms into a luminous highlight that accentuates its minimalist design while creating a cozy, inviting ambiance on your patio. With the intuitive app, you can tailor each lighting scene to suit your mood with ease. But be warned: your evenings might stretch longer than planned.
markilux pergola style: outdoor living, around the clock.

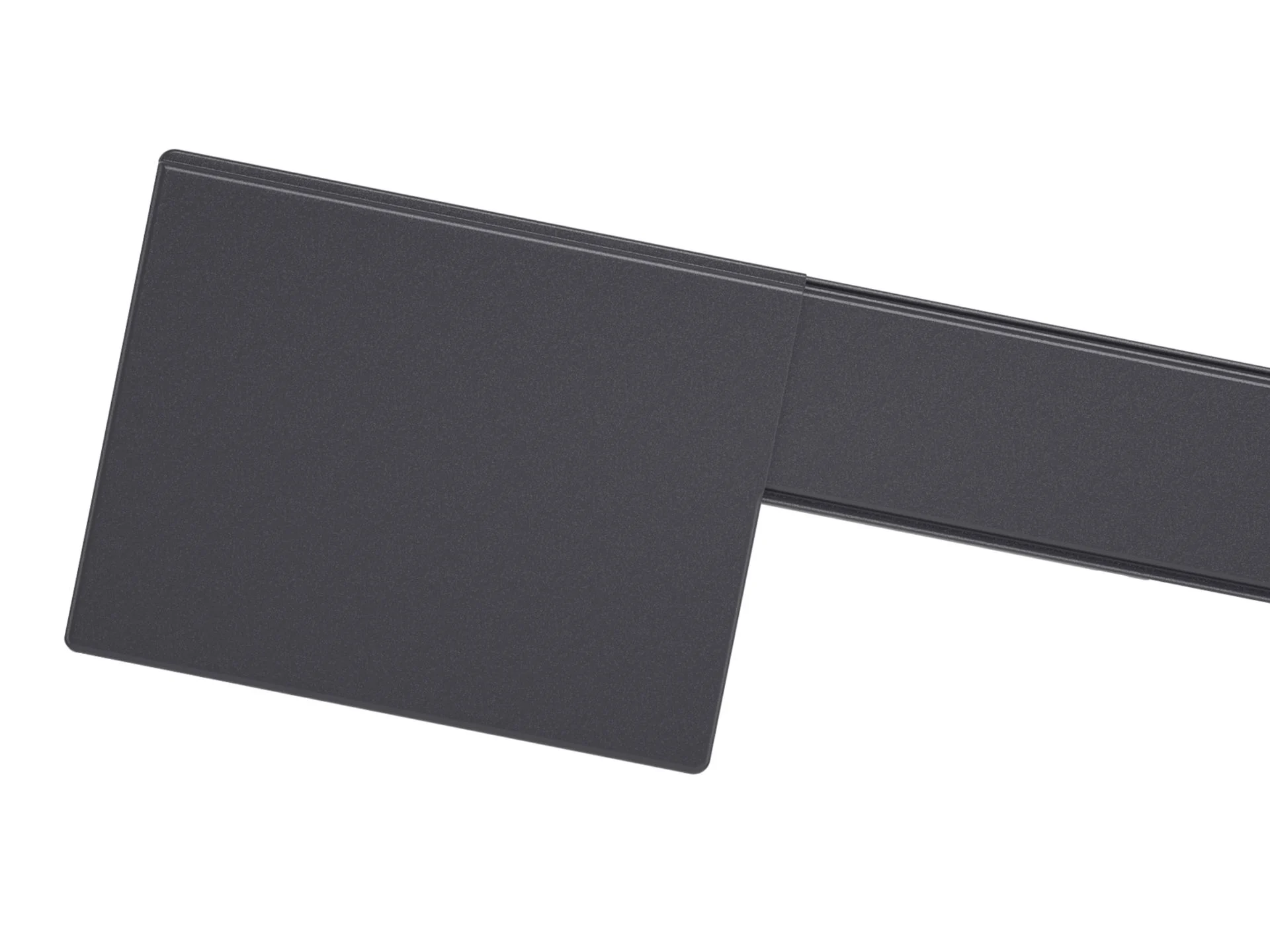

Closed Cassette

The sleek, full-cassette design—measuring just 205 × 160 mm—delivers a minimalist aesthetic while providing optimal protection for the awning fabric.

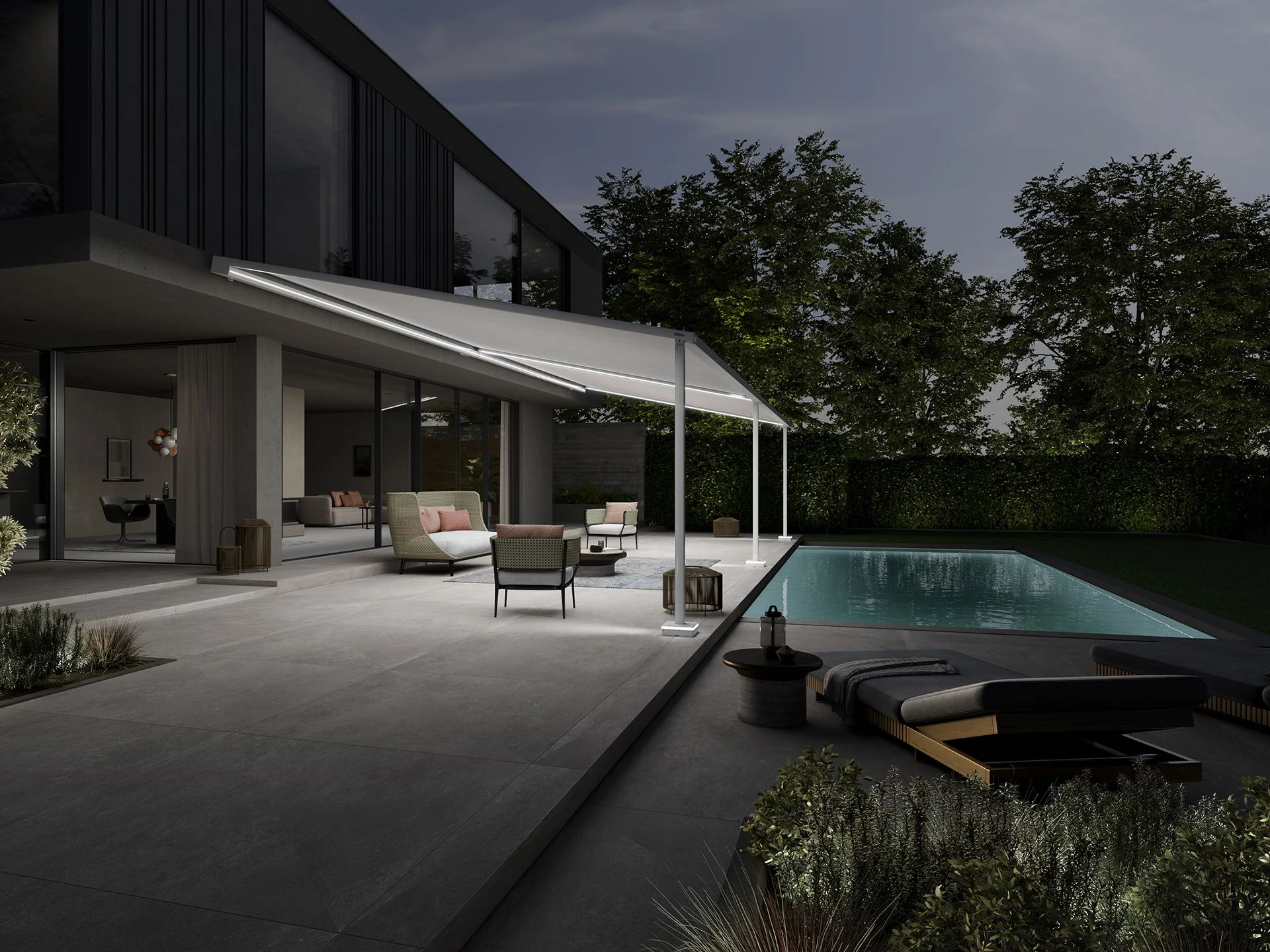

LED lighting options

Integrated LED lines in the cassette, guide tracks, support posts, and their foot covers—plus elegant LED uplights in the base—create a stunning lighting experience from top to bottom.

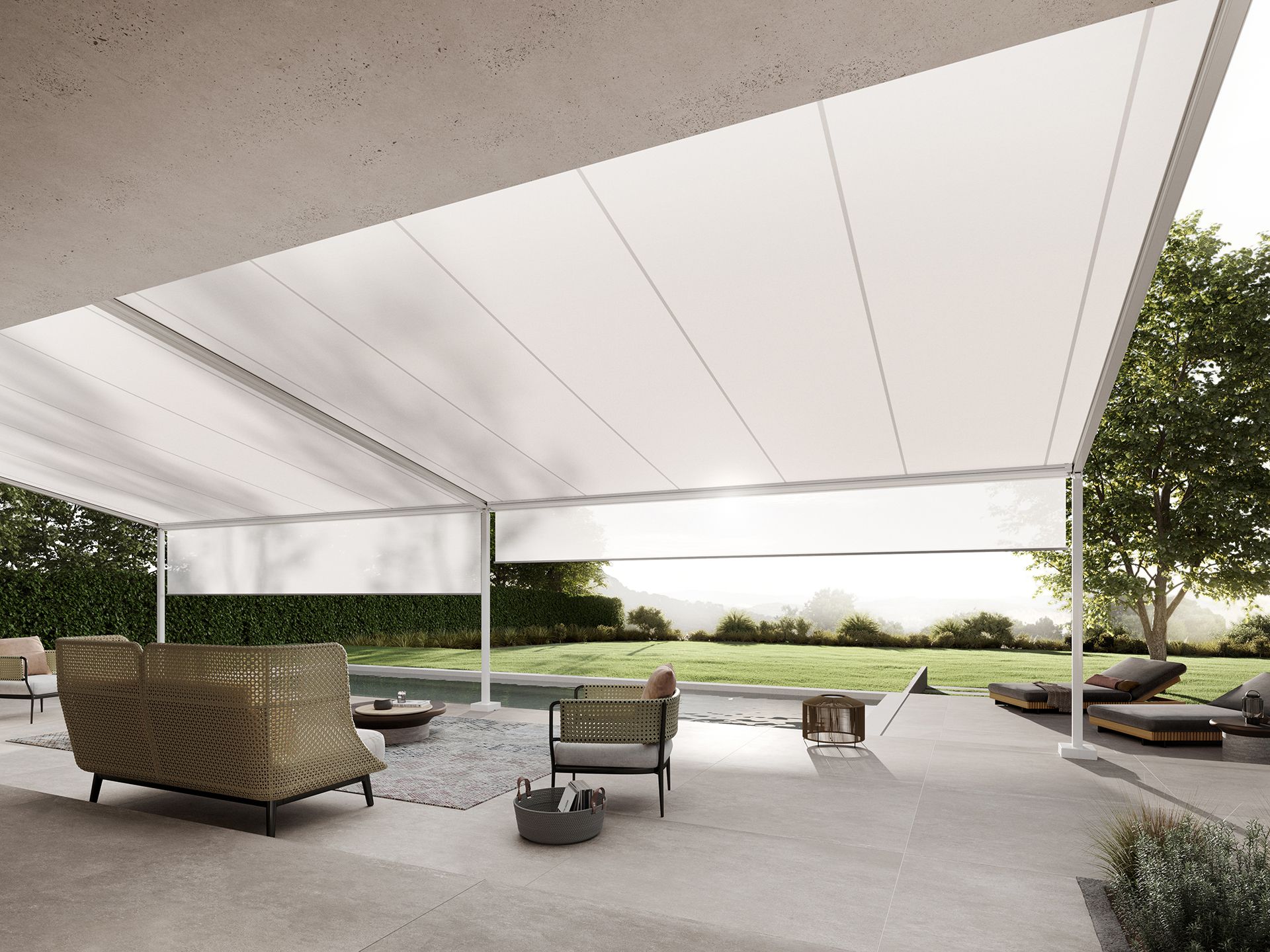

Shadeplus

The markilux shadeplus offers discreet yet effective protection from low-angled sunlight and unwanted glances—seamlessly integrated into the front profile for a clean, elegant look.

Tracfix

A standout markilux innovation: the lateral cover guidance system, designed to eliminate gaps between the fabric and guide tracks—enhancing both the visual appeal and wind resistance of the awning.

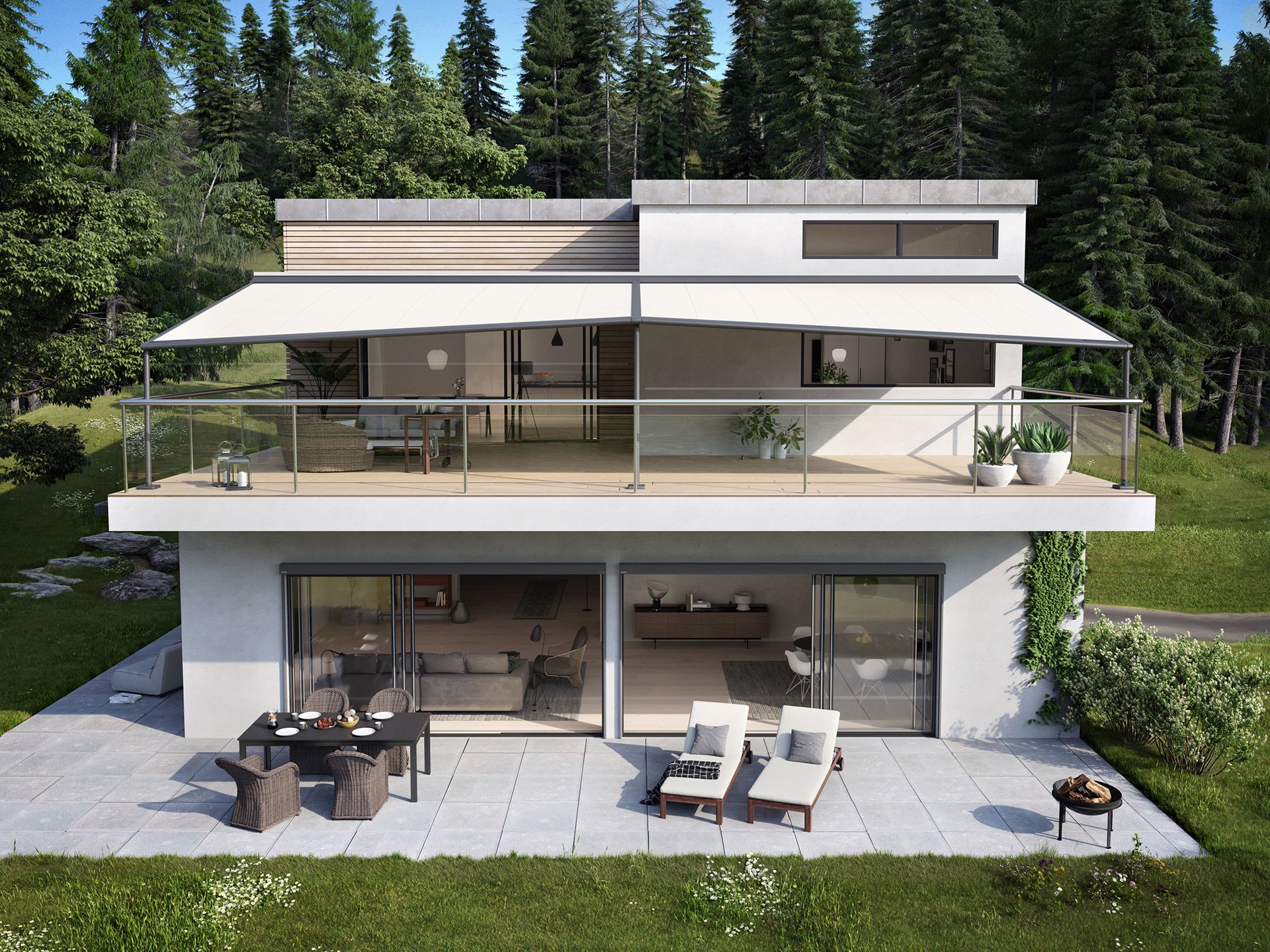

Telescopic post

For improved water drainage, the support posts can be lowered by 20 to 40 cm—optionally motorized for added convenience. Please note: this feature is not compatible with integrated lighting in the posts or footplate covers of the pergola style.

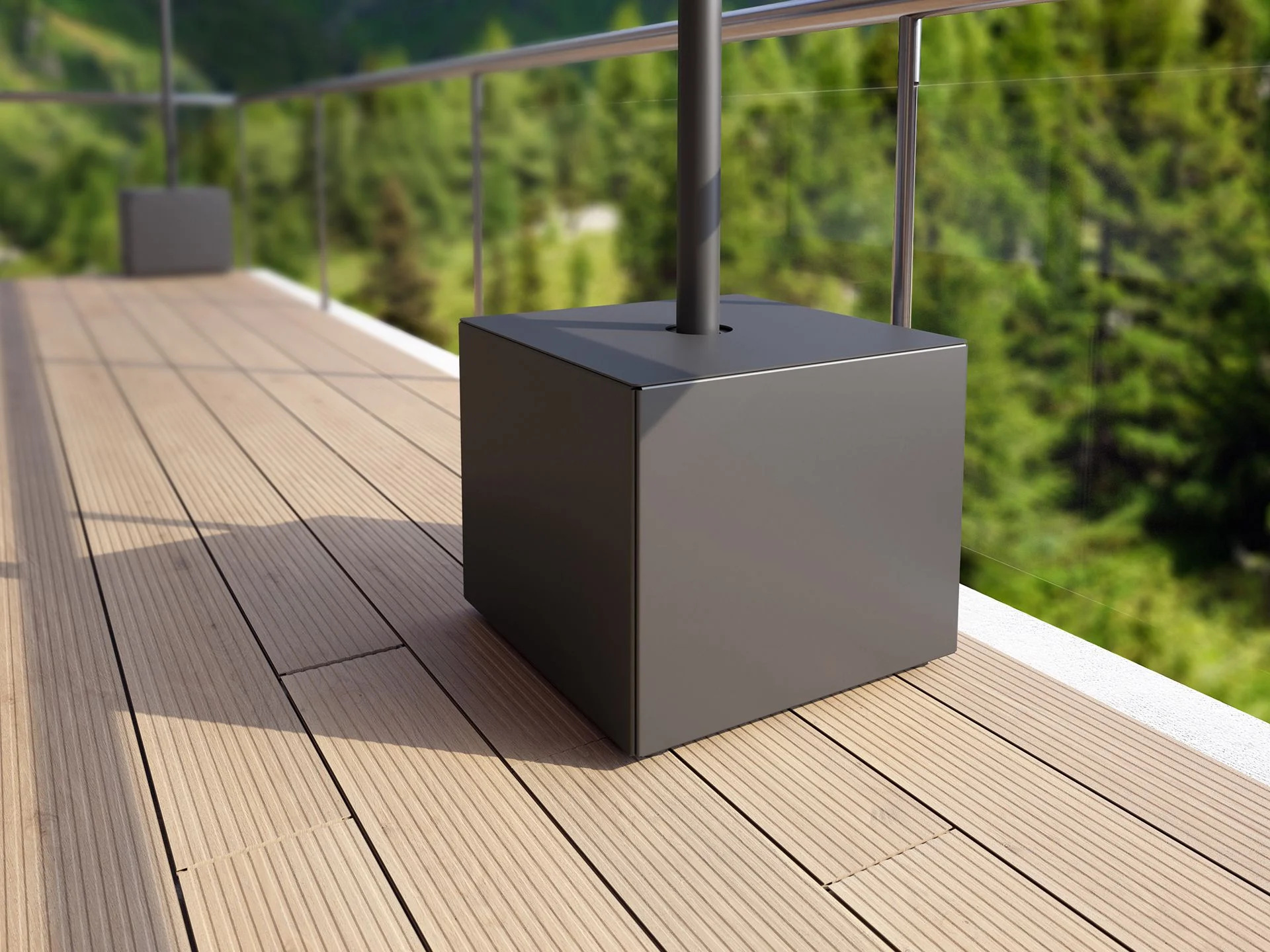

Ballast boxes

Ensure reliable stability for your markilux pergola—even when anchoring the front posts into the foundation isn’t possible or preferred.

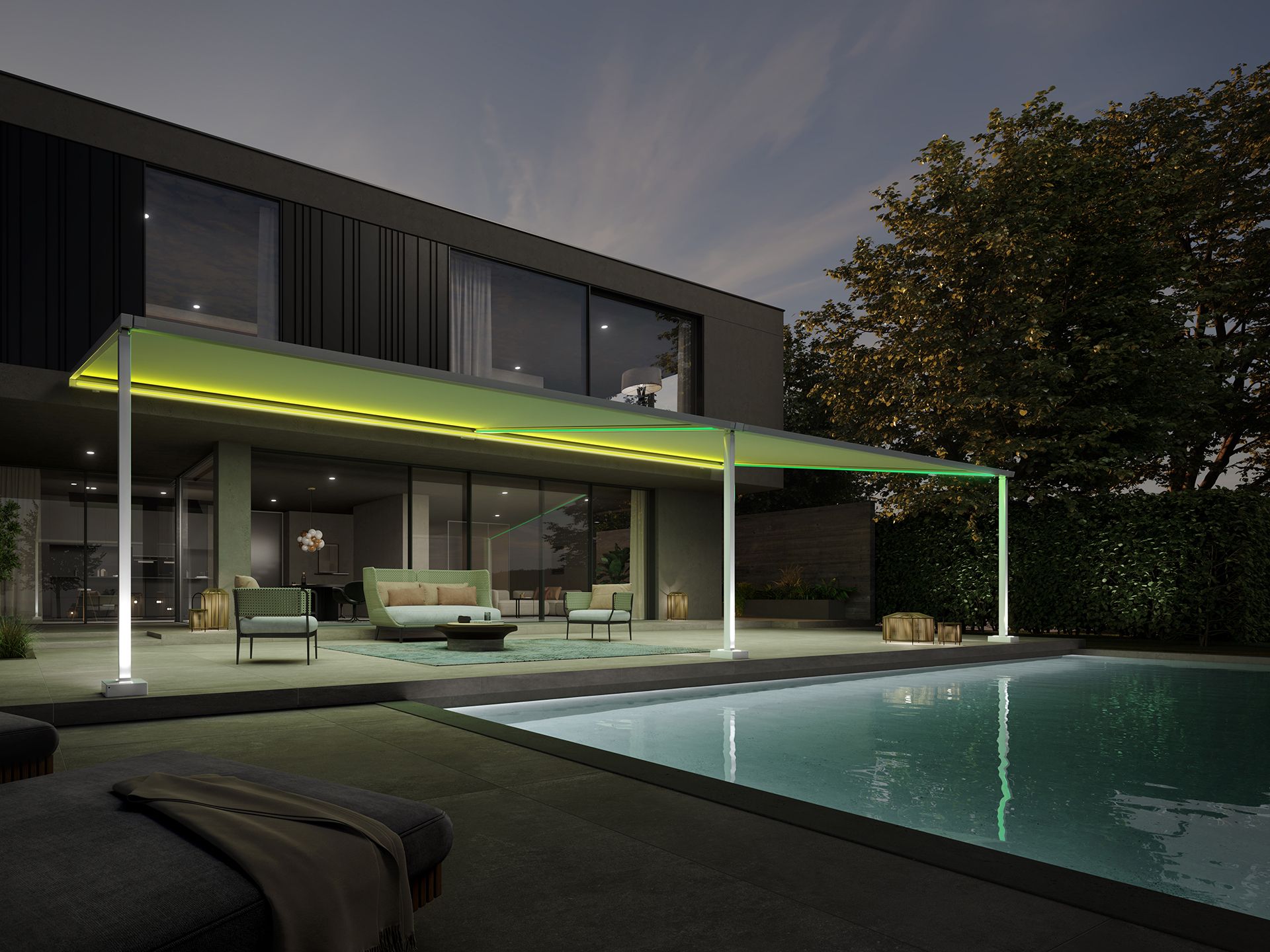

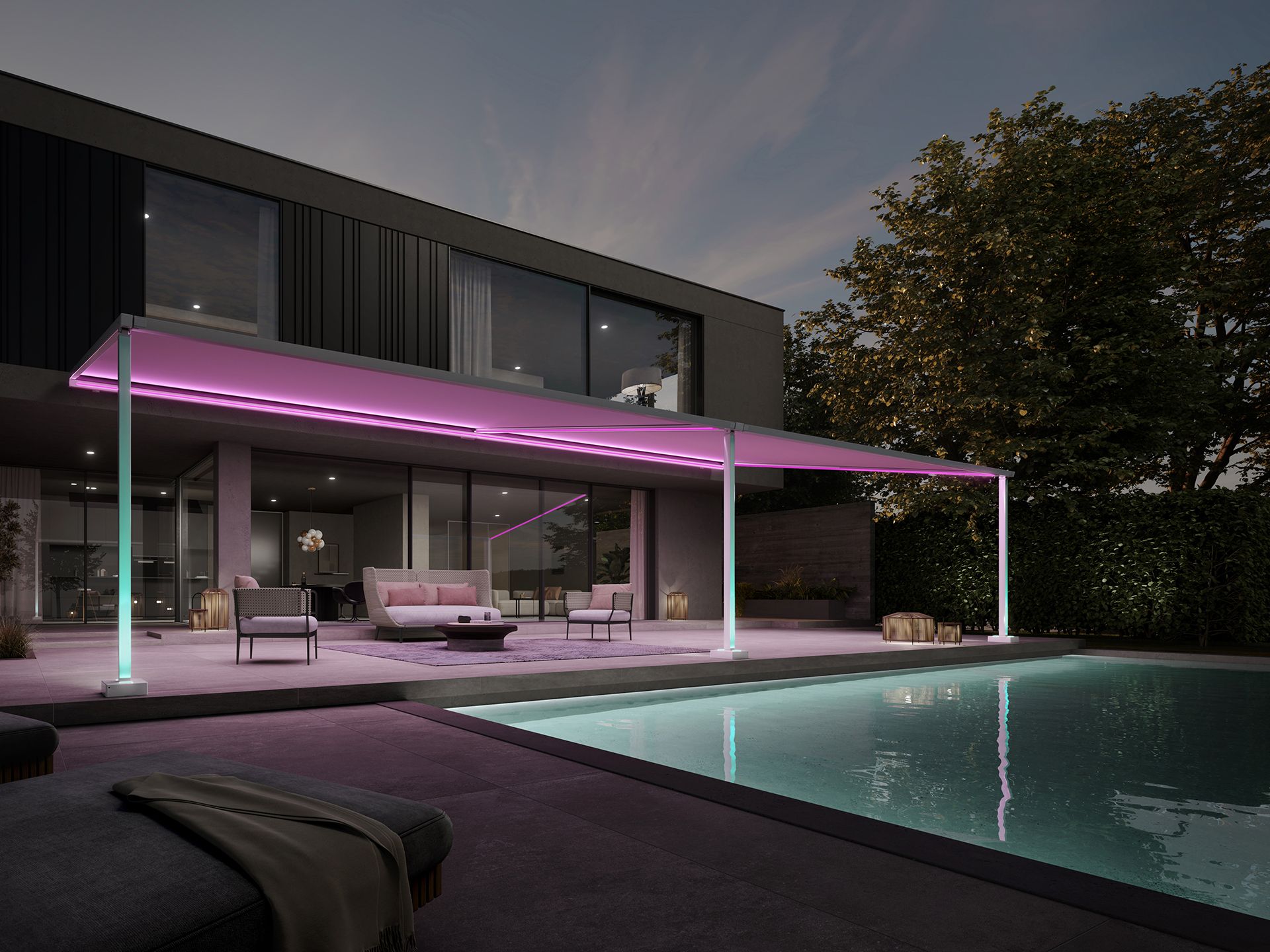

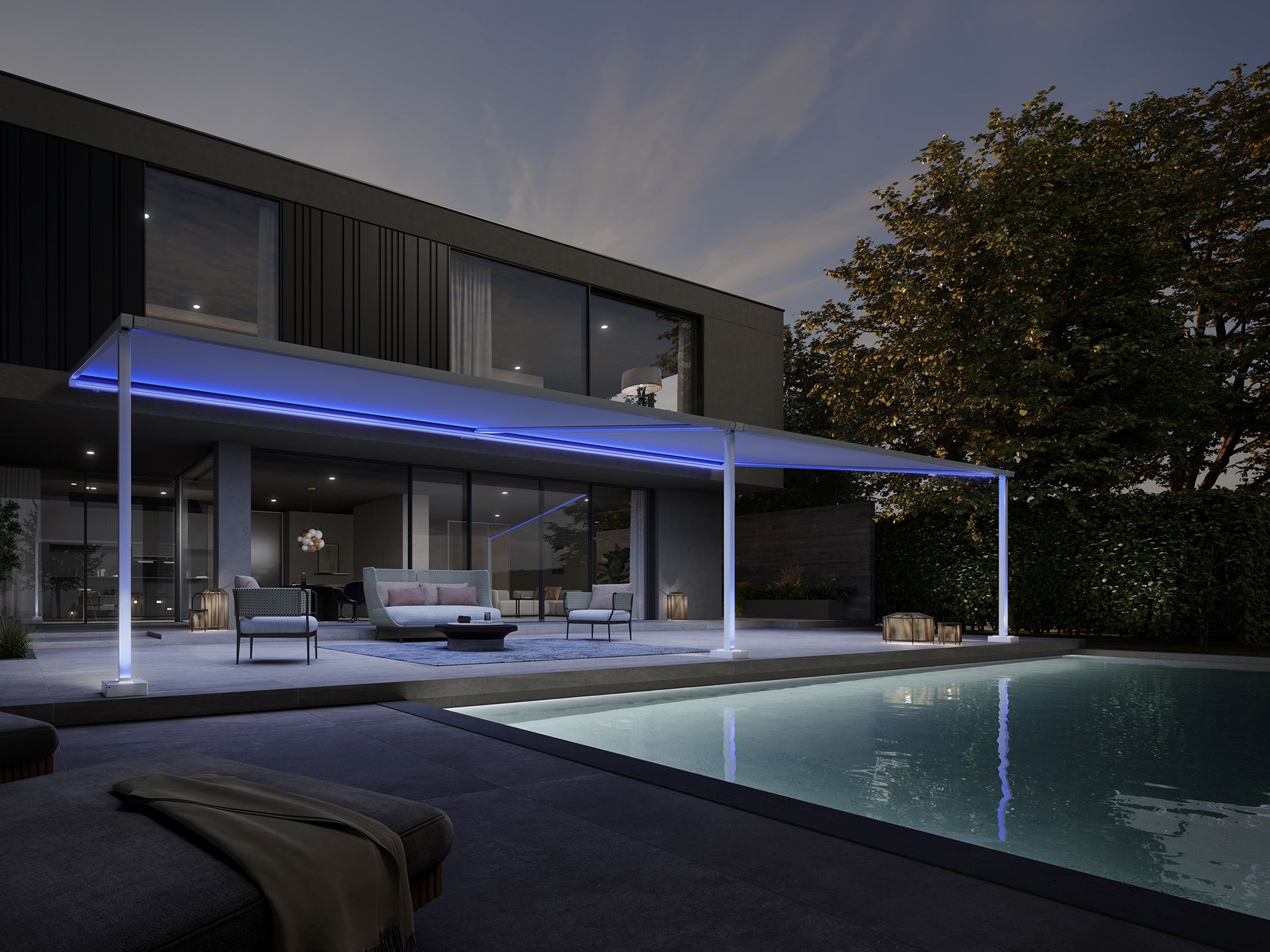

LED Lighting

The LED lighting options are a major feature for the Pergola Style with more than enough lighting provided behind, above and in front of you as well as on the floor too. Configure the lights as you wish and control via an app on your smartphone. The colours can change too to suit various moods and occasions.

The LED lighting isn’t an afterthought here, it is manufactured and built into the profile elements of the pergola when chosen and configured to suit. As you can cover larger areas outside with the Style it is very possible a lot more time will be spent in your new covered outdoor area and this includes going into the evening. The whole structure appears as if one piece with virtually no screws showing and the lighting is also discreet when not in use.

Technical Information

Awning type	Pergola awning
Maximum width x extension	•600 x 500 cm •500 x 600 cm
Options	•LED lighting options •shadeplus coupled awning
Area to be shaded	18 sqm
Cassette depth x height	30 sqm (tracfix)
Operation	•hard-wired motor •silentec motor •radio-controlled motor
Cover guidance system	tracfix (secure cover guidance zip technology without gap between cover and guide track)
Available fabric covers	•visutex •suncolours •smart art •perla FR perfortex
Fixture type	•face / top / roof
Wind resistance class \| corresponds to wind force	3 \| 6 → 38 – 48 km/h
Lighting options	•coloured lighting (RGB-WW) •LED-Line in the cassette •LED-Line under the guide tracks •LED-Line in the posts •LED-Line / LED-Uplights in the foot plate covers
Shadeplus	•shadeplus with motor •shadeplus with crank handle
Coupled awnings	coupled awning
Frame colours	•traffic white, RAL 9016 •metallic aluminium, RAL 9006 •grey brown, similar to RAL 8019 •off-white textured finish, 5233 •stone grey metallic, 5215 •anthracite metallic, 5204 •havana brown textured finish, 5229 •non-standard RAL colours
Posts	•telescopic posts •ballast boxes
Miscellaneous	panorama windows
