Gibus Med Zenit & Azimut | Folding pergola with flat roof

Elegant | High-Performance | High Quality | Configurable

Pergola system with retractable roof system in block-out PVC fabric, resistant to UV and waterproof. The structure consists of horizontal beams, perpendicular to the posts. No slope for water drainage is required. The roof system drains the rainwater to the perimetric structure thanks to the curved system of cloth profiles.

Gibus have developed two brand new fabric roof systems, the Med Zenit and the Med Azimut.

The names of both of these systems are based upon different angular measurements of spheres. This is a hint as to the key innovation of the Med Zenit and Azimut, as opposed to the Med Room system they are based on. Whilst the Med Room has a straight retractable fabric roof, both the Med Zenit and Azimut contain fabric roofs with a slight curve.

This allows for the rainwater to flow to the sides and into the integrated anti-splash guttering which runs around the frame. From there it runs down the guttering in the legs and exits at ground level, meaning no splashing or falling water. The curve is maintained via horizontal beams that stops the roof from losing shape or collecting stagnant water and keeps the correct amount of tension in the fabric.



The fabric itself is a PVC fabric, that is both waterproof and resistant to UV rays. This ensures that both the area and any people underneath are protected no matter the weather. You can fully retract the roof via an electronic motor.

The change in roof has major implications for the system’s appearance too. Because the roof is curved, there is no need for a slope like with most other med room systems. This means that the frame on the top is much slimmer, resulting in a more elegant looking profile. This means you can easily use this system with single story buildings.

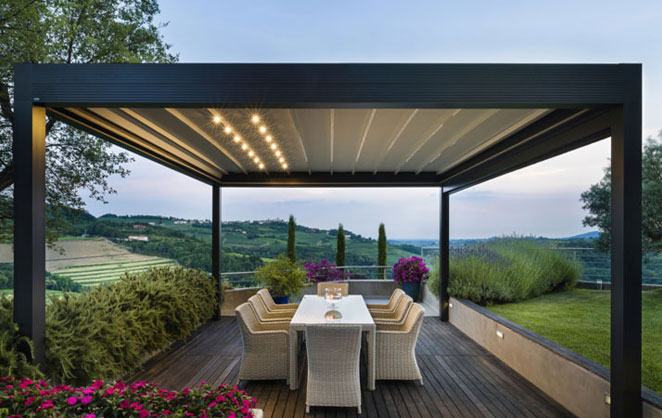

Med Zenit

The Med Zenit ergola system with retractable roof system in block-out PVC fabric, resistant to UV and waterproof. The structure consists of horizontal beams, perpendicular to the posts. No slope for water drainage is required. The roof system drains the rainwater to the perimetric structure thanks to the curved system of cloth profiles.

The gutter is integrated within the perimetric frame and the drain water to the ground is through the posts. The perimetric frame is patented Anti-Splash, which means that the up and over side prevents the rainwater, which falls from the cloth to the gutter, from spurting inside the pergola. Aluminium profiles and aluminium die cast parts are powder coated. Screws are in stainless steel. It can be operated RTS or IO Home-control motor.

LED spots can be integrated in the cloth profiles or in the perimetric frame. LED Strip RGB can also be installed in the perimetric frame.

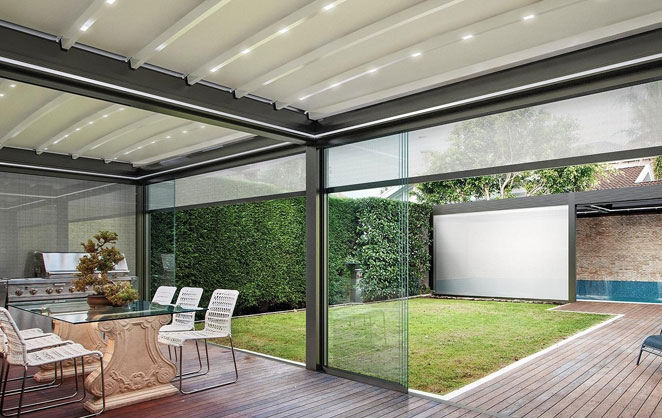

Med Azimut

The Med Azimut Pergola system with retractable roof system in block-out PVC fabric, resistant to UV and waterproof. The structure consists of horizontal beams, perpendicular to the posts. No slope for water drainage is required. Moreover the patent Inner Guide permits the complete integration of the perimeter ZIP drop awnings.

This solution also permits to install both glass walls for protection from the wind and block out blinds, which are essential to avoid the greenhouse effect during the warmer months. The roof system drains the rainwater to the perimetric structure thanks to the curved system of cloth profiles.

The gutter is integrated within the perimetric frame and the drain water to the ground is through the posts. The perimetric frame is patented Anti-Splash, which means that the up and over side prevents the rainwater, which falls from the cloth to the gutter, from spurting inside the pergola. Aluminium profiles and aluminium die cast parts are powder coated. Screws are in stainless steel. It can be operated RTS or IO Home-control motor. LED spots can be integrated in the cloth profiles or in the perimetric frame. LED Strip RGB can also be installed in the perimetric frame

For further information on the Gibus Med Zenit and Azimut, please contact our team on 01933 274276.
