Erhardt QUBE ARC | The Pergola awning for flexible weather protection

Curved | High-Performance | Beautiful |

ERHARDT expands its pergola range with the QUBE series of awnings. With the introduction of the new QUBE Arc pergola, the range is expanded even further.

The QUBE Arc aluminium pergola protects you from sun, wind and humidity. Thanks to the movable covering, a new concealed system to collect and drain rainwater makes the pergola very efficient, even in very heavy rain..

The curved roof ensures a very low overall height and a beautiful aesthetic.

A large selection of fabrics (transparent, translucent or opaque), a wide range of accessories such as LED lighting, heaters, vertical awnings with zip function and all-glass sliding doors that can be moved sideways complete the range and allow you to adapt the QUBE Arc to your individual needs.

Extend your outdoor season with additional optional accessories. At night, LED lighting creates an atmospheric ambience under the awning.

Sophisticated Design with Outstanding Functionality

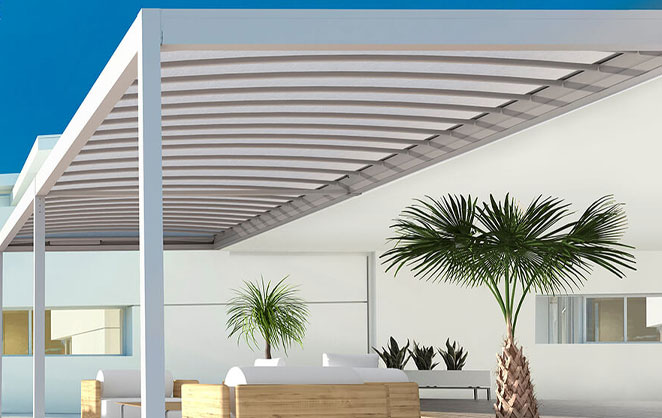

The QUBE Arc is equipped with a curved roof for a beautiful aesthetic. This product has a low installation height and does not require any pitch. The large selection of fabrics for the curtain enables an individual look depending on your taste.

The Qube ARC curved Pergola has a waterproof curtain mounted on horizontal slide rails and is powered by a mo-tor and quiet timing belt technology.

In its extended state, the fabric reaches its full tension and curvature, thus forming a waterproof curtain against the construction. In its retracted state, the curtain is folded into a minimal package and you can enjoy the sun directly.

Design

The QUBE Arc a harmonious design combined with an architecturally appealing form and protection from sunlight.

This is reflected, among other things, in such details as the upper support section, which is almost inconspicuous, although technically highly efficient in the constructio with integrable LED strip in the surrounding gutter, which you can dim continuously via a remote control.

Gutter systems located on the slats channel the rainwater into the surrounding gutter. From there, the water is drained in a concealed manner by the supports.

Even when opening the curtain after a rain shower, the water is drained in a controlled manner by the intelligent design of the profiles, and thus protects you completely.

Tested, Safe System

All materials, mechanisms and constructive elements have been tested by strict certifica-tion bodies who constantly monitor and check the quality of production. ERHARDT Markisenbau GmbH has received the CE marking of the product in accordance with EN 13561 and EN 1090. For the QUBE Arc pergola, wind resistance class 6 as per EN 13561:2015 was achieved.

Technical details

Maximum dimensions: 550 x 1000 cm*, Support length max. 250 cm *from 700 cm, additional central support and central reinforcement

Mounting technique: Wall mounting possible

Technology:

Drive and shift via rope technology

Motors compatible with Somfy RTS and io control

Frame colour: White(RAL 9016), Grey aluminium structured (RAL 9007 finely structured), Anthracite (DB 703)

Custom colour? available in any RAL colour

Fabric designs:

Special features:

Free-standing, self-supporting construction

Concealed drainage

Surrounding gutter profiles

Wind resistance class 6 in accordance with UNI EN 13561

Sun protection by the choice of the fabric and the movement of the cloth

Accessories

Automatic wind and rain control

LED strip in gutter and/or fabric support profile possible

Infrared heating element

Vertical awnings ERHARDT Z E-105 and ERHARDT Z E-125 for lateral shading

Create your refuge with all-glass sliding doors (GST)
